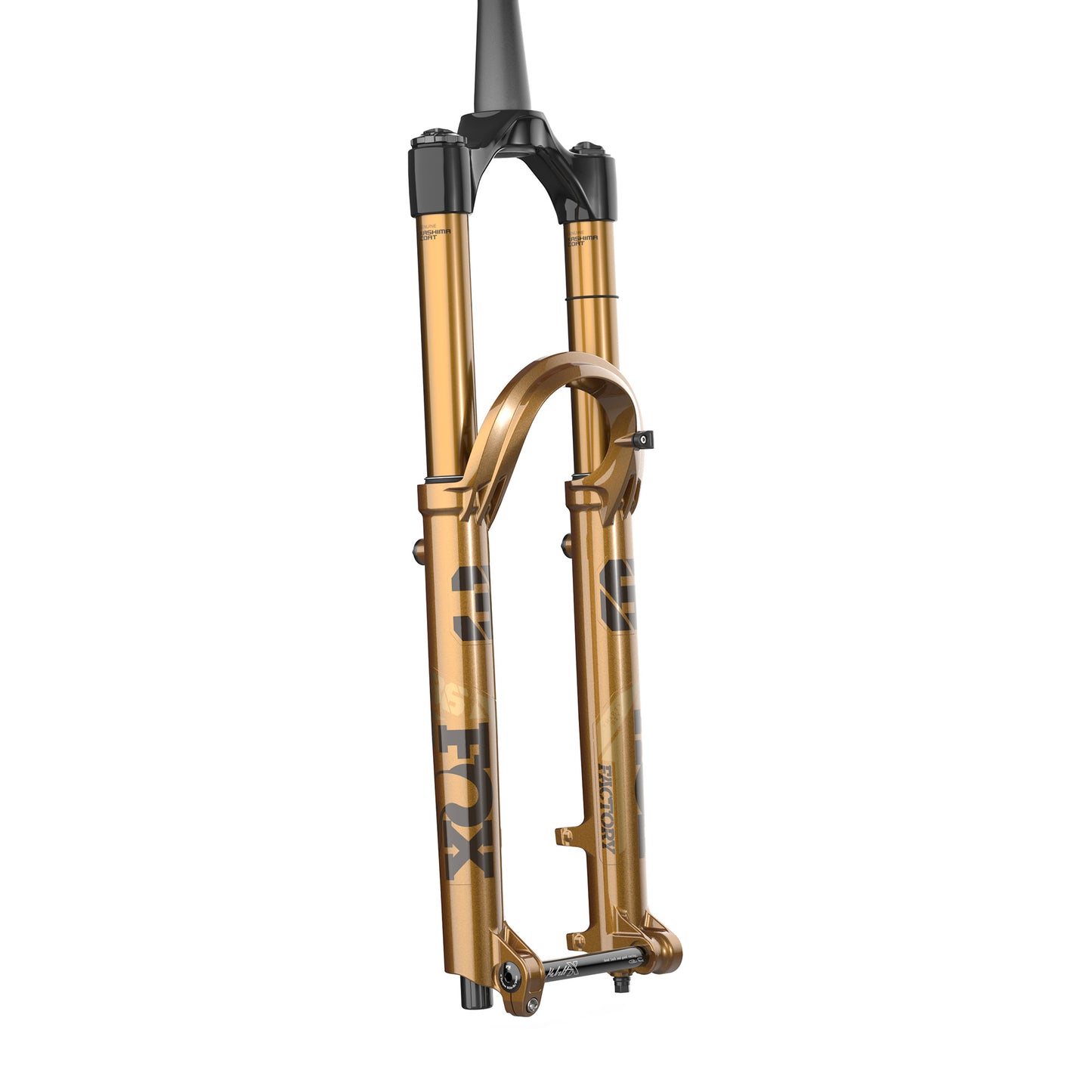

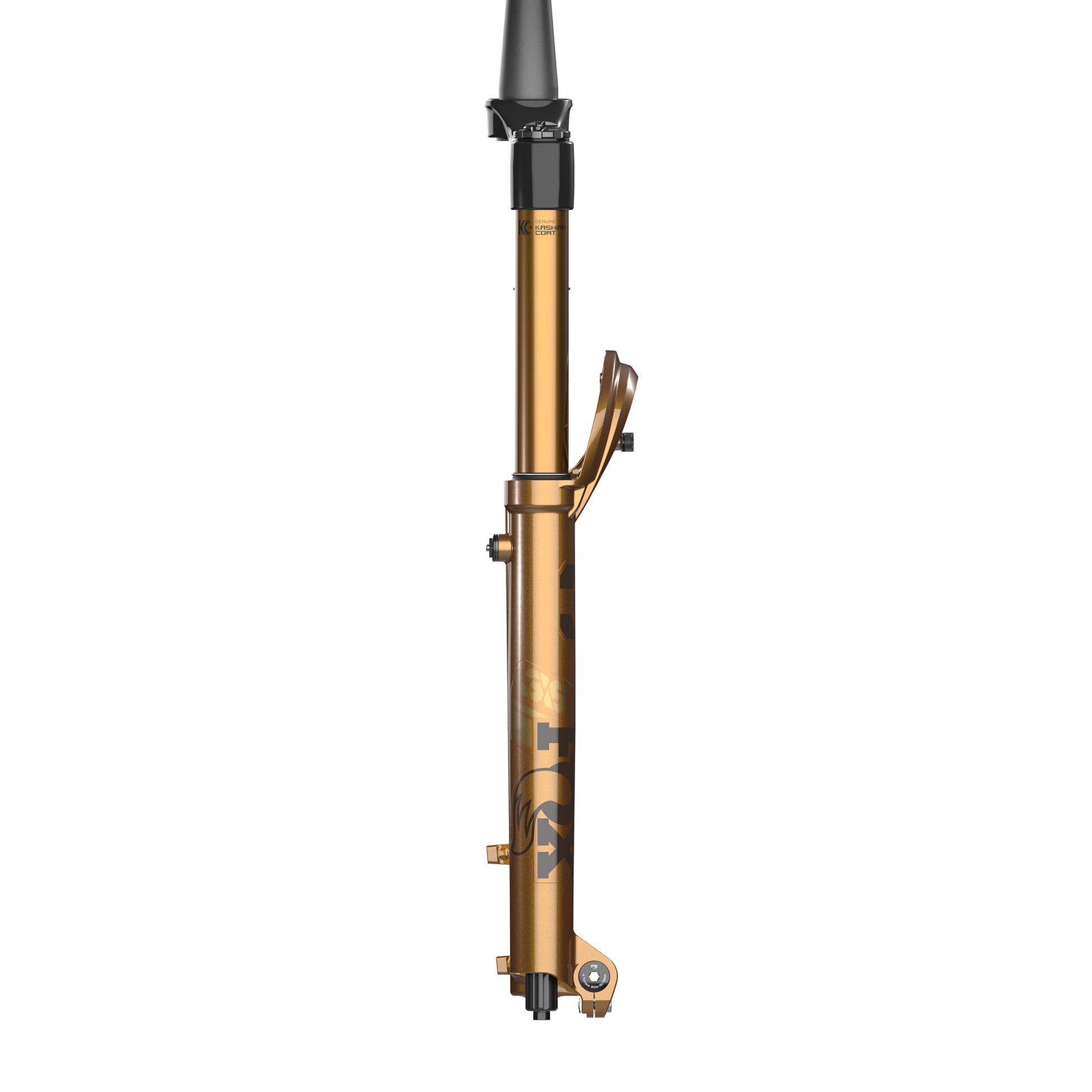

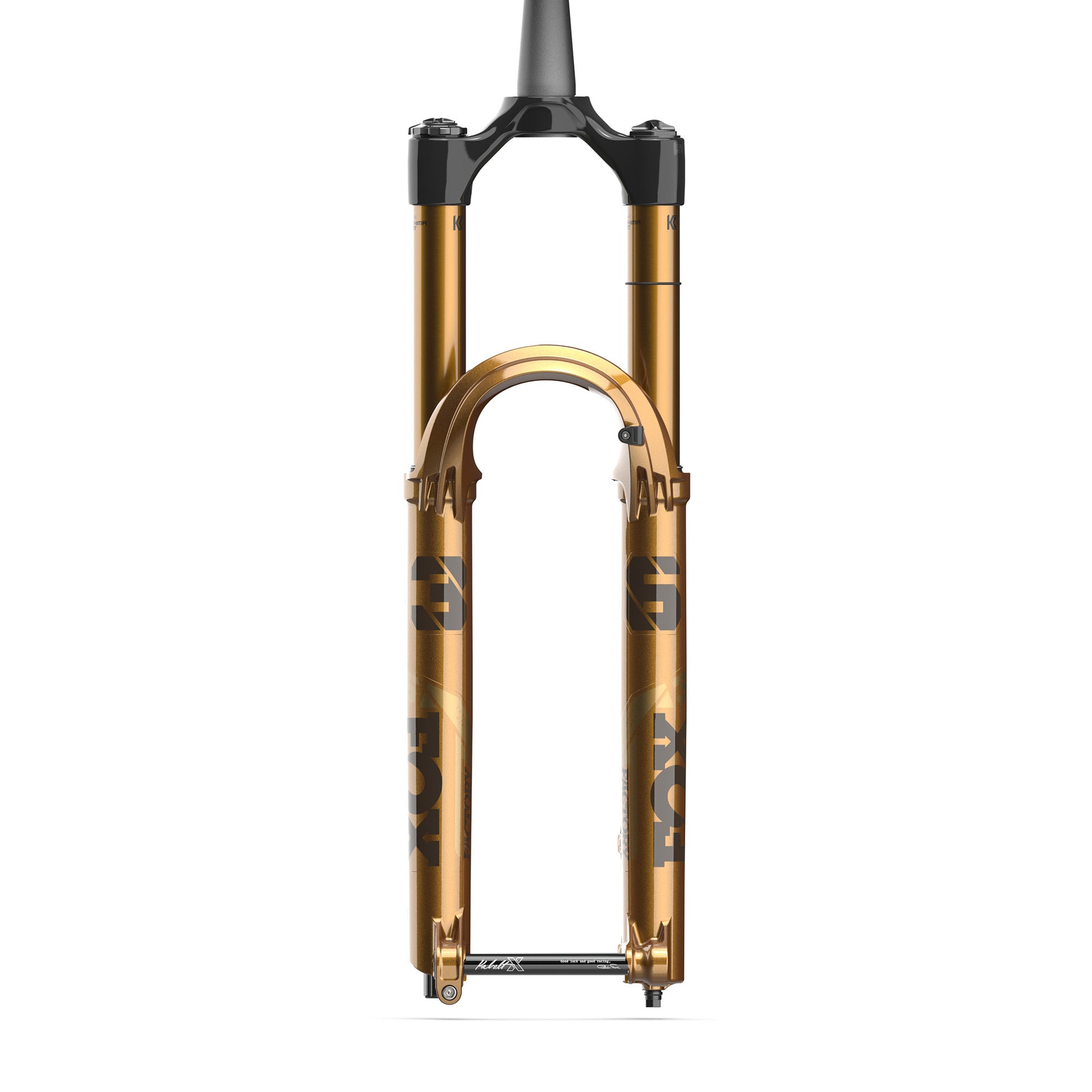

FOX 36 Float Factory GRIP X Tapered Podium Gold Fork

THE UNDISPUTED ALL-MOUNTAIN CHAMPION

Packed with features to dominate the descents, the 36 answers the call from aggressive all-mountain riders. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.

To celebrate 50 Years of pushing potential further, FOX is releasing a run of Factory forks in our brand-new limited Podium Gold colourway. Once sold out, this color will not be restocked.

FEATURES

• GRIP X - Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency. Learn more about the new GRIP family.

• KABOLT X AXLE - A lightweight bolt-on floating axle, the Kabolt X shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design. Chassis alignment reduces unwanted friction between the upper and lower fork legs, providing much smoother suspension movement throughout the entire range of travel. The 36 is also available in a convenient tool-free quick-release lever floating axle.

• LOWER LEG BLEEDERS AND BYPASS CHANNELS - Bleeders allow atmospheric pressure equalization at the push of a button. Lower leg bypass channels increase volume to alleviate pressure ramping as the fork moves through its travel. Both result in better fork performance by increasing small bump sensitivity and responsiveness.

• LOWER LEG ARCH - The lower leg design of the 36 shaves every possible gram while maximizing stiffness and strength requirements of enduro and aggressive all-mountain riding.

SPECIFICATION

• Rake: 44mm
• Chassis: Standard
• Wheelsize: 29in
• Series: Factory
• Travel: 160mm
• Damper: GRIP X
• Damper Controls: HSC-LSC-LSR
• Axle: Kabolt-X 110
• Steerer: 1.5 Tapered
• Upper Tube Finish: Kashima Coat
• Air Channels: Yes
• Bleeders: Yes
• Floating Axle: Yes
• Rotor Size: 180 direct Post Mount, Up to 230 compatible
• Air Spring: FLOAT EVOL
• Mud Guard Mount: Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
• Starting Weight: 1929g (36, 29, F-S, 160, Grip X, Kabolt X)
