MOFIRE BIKES

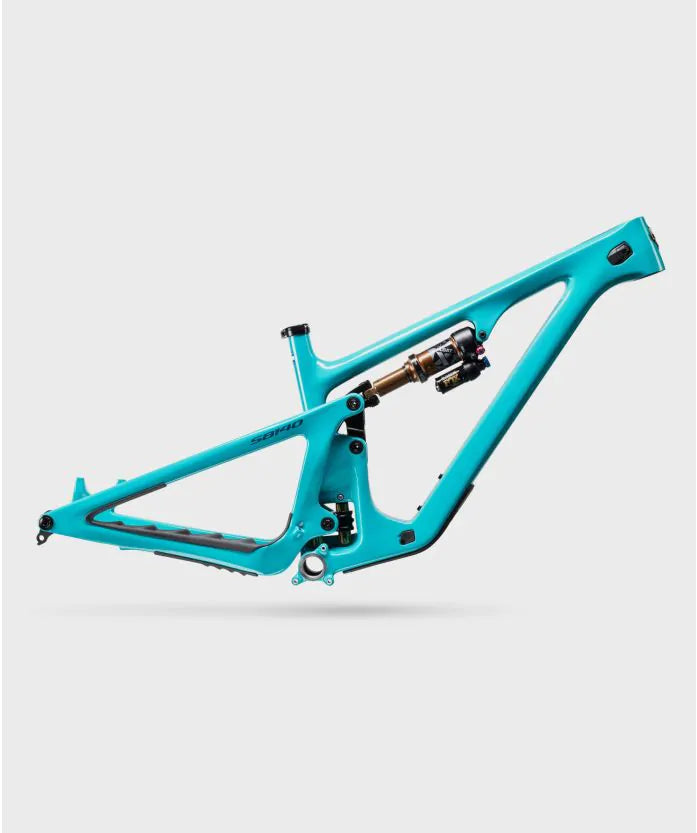

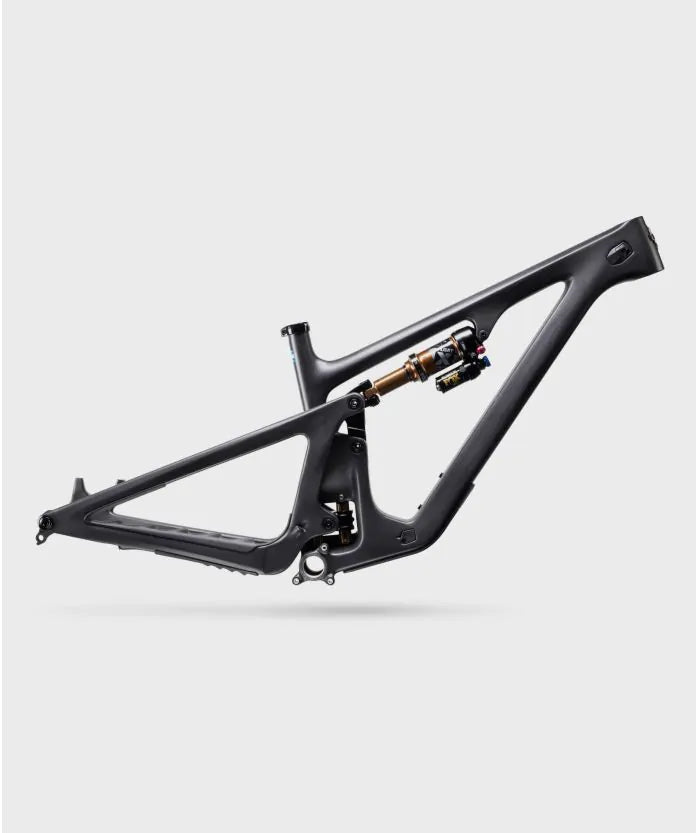

Yeti Cycles SB140 T-Series 29" Frame
£4,400
- Threaded bottom bracket
- High-clearance downtube
- Dual -density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Boost spacing
- Sizes S -XXL
TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
| FRAME | TURQ Series |
| SHOCK |
FOX FACTORY FLOAT X |
| 160MM FORK | SM | MD | LG | XL | XXL | |
| A | SEAT TUBE LENGTH | 365 | 400 | 440 | 470 | 485 |
| B | EFF. TOP TUBE LENGTH | 571 | 602 | 623 | 650 | 670 |
| C | HEAD TUBE ANGLE | 65.4 | 65.4 | 65.4 | 65.4 | 65.4 |
| D | EFF. SEATTUBE ANGLE | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
| E | ACTUAL SEATTUBE ANGLE | 72.2 | 726 | 72.8 | 73.2 | 73.7 |
| F | CHAINSTAY LENGTH | 436 | 438 | 440 | 442 | 444 |
| G | WHEELBASE | 1184 | 1217 | 1242 | 1273 | 1300 |
| H | ESTIMATED BB HEIGHT | 339 | 339 | 339 | 339 | 339 |
| I | STANDOVER | 722 | 729 | 733 | 735 | 740 |
| J | HEADTUBE LENGTH | 92 | 95 | 100 | 112 | 134 |
| K | FORK (AXLE TO CROWN) | 565 | 565 | 565 | 565 | 565 |
| L | FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| M | STACK | 614 | 617 | 621 | 631 | 651 |
| N | REACH | 435 | 465 | 485 | 510 | 525 |
| O | FRONT CENTER | 748 | 779 | 802 | 831 | 856 |
| P | VERTICAL FORK TRAVEL | 136 | 136 | 136 | 136 | 136 |
